20073-UnlimitedColorsPack-055 v1.0.0

Documentation

Thank you for purchasing my theme. If you have any questions that are beyond the scope of this help file, please feel free to email via my user page contact form here. Thanks so much!

General Information

DotNetNuke Information

To install this skin you must have a working version of DotNetNuke already installed. If you need help installing DotNetNuke, follow the instructions in Video-Library. Below are all the useful links for DotNetNuke information.

What Is Included With Your Package

When you purchase our theme, you will receive one large .zip file that contains everything inside. Unzip that file to get all the content inside. Below is a full list of everything that is included along with a brief description of each item. See the corresponding sections for info on installing the theme.

Notice: If you bought the theme from DNN Store (http://store.dnnsoftware.com), then none of module files are included in the download package. It only include DNN Skins, DNNGo_xPlugin, Page Templates and PSD files. If you need to purchase modules, please contact us via email (dnnskindev@gmail.com).

What Are The Requirements To Use skins and modules

To use skins and modules, you must be running DNN 7.x or higher. We have tested it with DNN7.x and DNN8.x.

Skin and Required Modules Installation

  1. Go to Host-Settings –> Host-Settings, and select the tab Other Settings, changing Max Upload Size to 28 or higher.
  2. Go to Host –> Extensions –> Install Extension wizard to install the module pack DNNGo_xPlugin_03.00.00_PA.zip
  3. Go to Host –> Extensions –> Install Extension wizard to install the skin pack 20073-UnlimitedColorsPack-055-DNNSkins.zip
  4. You can install other modules as per your own needs.
  5. After the installation has been completed, navigate to Admin –> Site Settings –> Basic Settings (tab) –> Appearance (section) and specify portal and edit skins and containers like shown in the screenshot below. It should be done, in order to make your DNN admin UI look correct and readable.
  6. Now you can upload the LOGO image in Admin –> Site Settings –> Basic Settings (tab) –> Appearance (section) page.

How to import page template?

Exported page templates will allow you to reproduce our live demo pages. We'll reproduce the home page as an example.

  1. You can find these files in Page Templates Directory.
  2. Upload Home.page.template file into your portal root (e.g. Portals/0/Templates/) in the previous chapter , you are able to start using page templates to clone live demo pages.
  3. Because page templates can not import image files, you need to upload all the photo files of the "images" folder into your portal root (e.g. Portals/0/).
  4. Synchronize the file in Admin > File-Management
  5. Navigate to the Home page and click Pages -> Import.
  6. Find a proper page exported content file navigating to Templates folder and choosing for example Home page.
  7. Choose "Replace the current Page" and the redirect mode you need. Please note, if you select "Replace the current Page", content of current page will be reset.
  8. Click Import button if everything is correct.
  9. Specify page settings according to your needs (necessarily apply HomePage skin to the home page) and click "Update Page". The home page is ready.

Skin features and how to use them.

Page Template

The product contains page templates for all pages in the live demo, you can copy our demo site by importing the page templates.

Ten kinds of header layout

You can click the xPlugin button to go to settings page, and then choose different header styles in Header Layout section.

Each header includes very rich setting options, you can modify the color of whatever you would like to . For example: text color, font size and background color etc.

Header Layout

Each header includes three kinds of layouts, which are Full, Boxed and BG-Boxed.

Full Layout and Boxed Layout

This skin contains Full Layout and Boxed Layout, you can set through Content Layout section.
With Boxed Layout applied, you can still set page background, it will display around the content. You can click link to check demo url of boxed layout.
The background can be set as static or rotating image or any solid color for you choose to apply, also you can set different background images for different pages.

How to set width for skin

Go to Content Layout settings, you can set width for skin on different devices, for example, you can set a width of 1400px for skin in over-large screen, so width of the content section is 1400px, you can also set auto for it, so width of content section is the same as screen.

Pane layout

It includes settings for multiple kinds of pane layouts, for example, layout used for homepage is 0-12-0, layout used for InsidePage-leftmenu is 3-9-0, and layout used for InsidePage-rightmenu is 9-3-0.

How to set background image for DNN page.

  1. You need to choose Boxed Layout.
  2. Choose Page Background in the Option for Show bg, save settings.
  3. Click "pages" nav in the xPlugin.
  4. Click Edit Background icon.
  5. Upload image, the background image will show as slider if you choose two or more images.
  6. "Globals" allows you to set background image for all pages.
  7. Also you can set background image for each page.

How to set breadcrumb image for DNN page.

  1. Choose Breadcrumb Background in the Option for Show bg, save settings.
  2. Click "pages" nav in the xPlugin.
  3. Click Edit Breadcrumb icon.
  4. Upload image, the background image will show as slider if you choose two or more images.
  5. "Globals" allows you to set background image for all pages.
  6. Also you can set background image for each page.

Loading Style

You can set the page loading animation.
You can select to have this feature turned on or off.

Content Style

You can set the font color and size, link color, the color of H1-H6 etc of the content area.

Sidebar Layout

Here you can set style for leftmenu and rightmenu.

Set Up Google Map

You can create Google Map easily following these steps:

  1. Go to xplugin, and click Map Settings tab to fill in API.
  2. You can register through https://developers.google.com/maps/documentation/javascript/get-api-key.
  3. Place the code <div id="gmap01"></div> into HTML module.
  4. Enter location of the map in Address, for example: Bear city, ny
  5. Enter description in Markers Html, for example: hello word

Logo Settings

Home Page Style

It includes 18 homepages in the skin, each homepage is invoking individual css separately, for example, what being invoked by HomePage01 is HomePage01.css, and what being invoked by HomePage02 is HomePage02.css.
If you need to apply codes of HomePage02 in HomePage01, you will have to check both HomePage01.css and HomePage02.css, as shown in image below:

Five kinds of Breadcrumb layouts

You can change the text color, background color and background image etc for each Breadcrumb layout.

Create a Skin

You can create a new skin through xPlugin. Please note the new skin name shouldn't be the same as the current skin.

Standard Menu and MegaMenu

The skin sub menus contain two types-Standard Menu and MegaMenu.

Standard Menu is the default menu type, the sub menus will be set to display in one column only, as shown in screen shot below:

MegaMenu will set sub menus to display in multiple columns, also you can display HTML module or third party module in sub menus, as shown below:

You can set the MegaMenu as per steps below:

  1. Click "pages" nav in the xPlugin.
  2. Click Edit MegaMenu button. Please note MegaMenu can be set for first level menus only.
  3. Set the menu type to MegaMenu.
  4. Mega Menu has 5 sections: Menu Top, Menu Right, Menu Bottom, Menu Left, Menu Center.

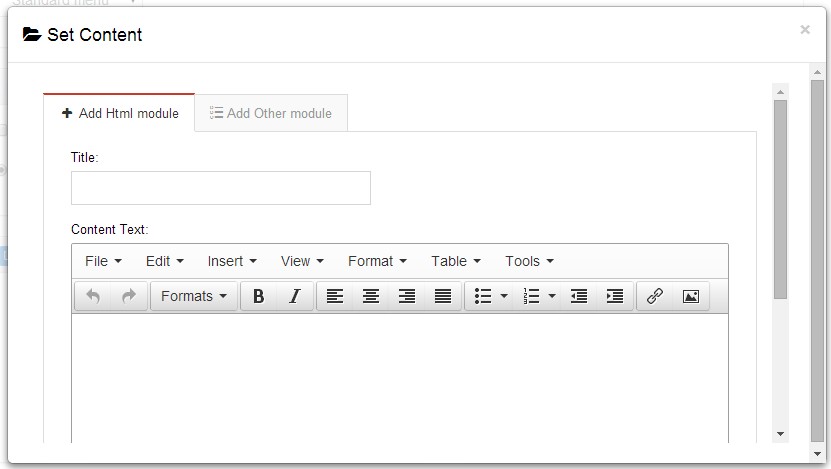

  5. Click Add button so you will be able to add HTML module or any third module to Menu Top, Menu Right, Menu Bottom, Menu Left.
  6. Module Type-choose to display HTML module or third module.
  7. Menu Center-it will display secondary menus here.
  8. Mega Columns-set number of columns the secondary menu will display.
  9. You can set width for Menu Right, Menu Left, Menu Center, please note their previous total width shouldn't be more than 100.

Set menu typography icon

You can set menu typography icon through the settings below:

You can set typography icon in Icon option under Pages setting, each page has separate icon settings.

You can choose the icon you need through dropdown options, you can also find the icon you need through text filter.

Global settings and Single settings.

It is default by xplugin that setting is only valid to one skin. If you need to apply the settings to all skins, you will have to select Global for Scope in Skin Settings, as shown in image below:

Coming Soon Page

You can click the link to check Coming Soon demo. Coming Soon

Below is the screen shot:

You can create the coming soon page easily following these steps:

  1. Create a page named coming soon page.
  2. Import the ComingSoon.Page.template for this page.
  3. You can set color, end time, and background image for Coming Soon page through xPlugin, as below:

CSS Codes

Skin is using bootstrap framework. You will get to know more through this url. Link

Width of content area

dnn_layout is the page content framework:

Device width Width of content area
Large devices Desktops (≥1200px) 1170px
Medium devices Desktops (≥992px) 970px
Small devices Tablets (≥768px) 750px
Extra small devices Phones (<768px) auto

content_mid is the spacing between both sides of the page :

Device width Spacing
Large devices Desktops (≥1200px) 30px
Medium devices Desktops (≥992px) 20px
Small devices Tablets (≥768px) 15px
Extra small devices Phones (<768px) 15px
<div class="dnn_layout">
  <div class="content_mid clearfix"> content ... </div>
</div>
Bootstrap 12 grid layout
<!-- Tablet and desktop devices are 50% wide, mobile device is 100% wide -->
<div class="row">
  <div class="col-sm-6">.col-sm-6</div>
  <div class="col-sm-6">.col-sm-6</div>
</div>

<!-- Stack the columns on mobile by making one full-width and the other half-width -->
<div class="row">
  <div class="col-xs-12 col-md-8">.col-xs-12 .col-md-8</div>
  <div class="col-xs-6 col-md-4">.col-xs-6 .col-md-4</div>
</div>

<!-- Columns start at 50% wide on mobile and bump up to 33.3% wide on desktop -->
<div class="row">
  <div class="col-xs-6 col-md-4">.col-xs-6 .col-md-4</div>
  <div class="col-xs-6 col-md-4">.col-xs-6 .col-md-4</div>
  <div class="col-xs-6 col-md-4">.col-xs-6 .col-md-4</div>
</div>

<!-- Columns are always 50% wide, on mobile and desktop -->
<div class="row">
  <div class="col-xs-6">.col-xs-6</div>
  <div class="col-xs-6">.col-xs-6</div>
</div>

<!-- Add the extra clearfix for only the required viewport -->
<div class="clearfix visible-xs-block"></div>
Display and hide elements
Extra small devices Phones (<768px) Small devices Tablets (≥768px) Medium devices Desktops (≥992px) Large devices Desktops (≥1200px)
.visible-xs Visible
.visible-sm Visible
.visible-md Visible
.visible-lg Visible
.hidden-xs Visible Visible Visible
.hidden-sm Visible Visible Visible
.hidden-md Visible Visible Visible
.hidden-lg Visible Visible Visible
Visible in mobile devices and hidden in other devices
<div class="visible-xs">content...</div>

Visible in other devices and hidden in mobile devices
<div class="hidden-xs">content...</div>
Vertical spacing
 /*page Spacing*/
.mt-10 {margin-top: 10px;}
.mb-10 {margin-bottom: 10px;}
.pt-10 {padding-top: 10px;}
.pb-10 {padding-bottom: 10px;}
.mt-20 {margin-top: 20px;}
.mb-20 {margin-bottom: 20px;}
.pt-20 {padding-top: 20px;}
.pb-20 {padding-bottom: 20px;}
.mt-30 {margin-top: 30px;}
.mb-30 {margin-bottom: 30px;}
.pt-30 {padding-top: 30px;}
.pb-30 {padding-bottom: 30px;}
.mt-40 {margin-top: 40px;}
.mb-40 {margin-bottom: 40px;}
.pt-40 {padding-top: 40px;}
.pb-40 {padding-bottom: 40px;}
.mt-50 {margin-top: 50px;}
.mb-50 {margin-bottom: 50px;}
.pt-50 {padding-top: 50px;}
.pb-50 {padding-bottom: 50px;}
.mt-60 {margin-top: 60px;}
.mb-60 {margin-bottom: 60px;}
.pt-60 {padding-top: 60px;}
.pb-60 {padding-bottom: 60px;}
Font Family

You can set Font Family throughDNNGo.xPlugin > Content Layout > Content Style

Default Font Family ：Used as page default font, it is also possible to call through class.
<div class="default_family">content...</div>
Special Font Family 1：Extend font, you can call through class.
<div class="special_family_1">content...</div>
Special Font Family 2：Extend font, you can call through class.
<div class="special_family_2">content...</div>
Default Font Size ：Used as page default font size, it is also possible to call through class.
<div class="default_size">content...</div>
Big Font Size : Extend font size 1, you can call through class.
<div class="big_size">content...</div>
Small Font Size : Extend font size 2, you can call through class.
<div class="small_size">content...</div>
Default Line Height : Used as page default line-height, it is also possible to call through class.
<div class="default_line_height">content...</div>
Small Line Height ：Extend font size 1, you can call through class.
<div class="small_line_height">content...</div>
Big Line Height ：Extend font size 2, you can call through class.
<div class="big_line_height">content...</div>

Short Codes

This skin contains a lot of short codes, it is very easy for you to use even you know nothing about js and css, all you need to do is just copying the short codes to HTML module.

DNNGo_LayerGallery Module

You can see this module in the banner section on the home page, we will guide you step by step to set up the module as the same as our demo site:

DNNGo_PowerForms Module

You can create the form through this module, click this link so you can check the module instruction details.

License interface

  1. Please login or register your account at http://www.dnngo.net
  2. Send an email to dnnskindev@gmail.com with your invoice ID, machine Key for every module( different module has different machine key), and your DNNGO username. We will generate an activation code for you. Please note: If your site is a demo site, your license will still be valid when you transfer your site to a live site.
  3. Manage my licenses

Contact Us

If you have any questions or suggestions about modules/skins or modules/skins installation process, please feel free to contact us.
